Hydraulic Cold Press Machine for Woodworking Door Stainless Door Plywood Mdf Board Aluminium Honeycomb Panels
Product Description:

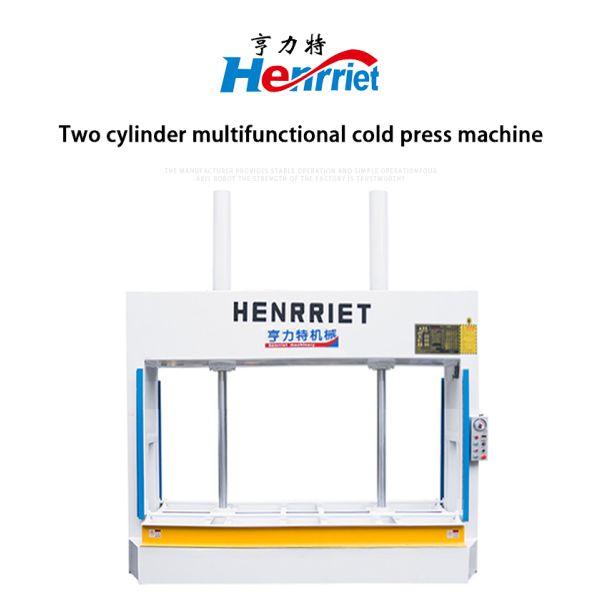

A dual cylinder cold press machine is an industrial equipment that uses a hydraulic system to drive two symmetrical cylinders to press, form, bond, or cure materials at room temperature (non heating). It combines the stability of hydraulic transmission and the uniform force advantage of dual cylinder structure, and is widely used in machining fields that require high precision, high pressure, and no thermal deformation.
Enhanced Production Efficiency and Accuracy
The synchronized twin-cylinder hydraulic system ensures consistent force application across the entire workpiece surface. This eliminates common pressing defects such as warping, layer separation, or uneven adhesion, which are frequently encountered in conventional pressing equipment.
With optimized platen movement rates and fully programmable dwell duration, the press smoothly accommodates a spectrum of process needs—from high-speed repetitive batches to delicate bonding operations involving complex or multi-layer materials.
Comprehensive Safety and Protection
An integrated monitoring system automatically detects excess pressure conditions and instantly cuts off the hydraulic flow, preventing motor strain and potential component damage. The inclusion of an emergency stop circuit and mechanical relief valves offers redundant safety layers during high-intensity operations.
The electrical cabinet incorporates overload protection, phase-loss monitoring, and short-circuit prevention. Physical safety measures such as protective guarding and accessible emergency stop buttons further secure the working environment for personnel and equipment.
Extensive Application Flexibility
The press is capable of processing a wide array of materials—including wood composites, metal sheets, and engineered laminates—making it suitable for industries such as furniture manufacturing, architectural element production, and metal forming.
Streamlined Maintenance and Operational Support
An integrated monitoring system tracks operational parameters such as pressure stability and hydraulic integrity, generating immediate alerts for deviations like pressure loss or seal leaks. This allows personnel to preempt failures and minimize unplanned interruptions.
Machine Specifications
| Maximum Pressure |
50 T (customizable) |
| Worktable Sizes |
2500mm × 1250mm (customizable) |
| Maximum Processing Thickness |
1000mm, 1300mm, 1500mm |
| Power Supply |
380V/50Hz, three-phase |
| Power |
4kW (customizable) |
| Dwell Time |
0-99.99 hours (Adjustable) |
| Platen Lift Speed |
10-12mm/s |
| Pressure Accuracy |
±1% (ISO-compliant) |
| Size |
3000mm × 1250mm × 2550mm |
| Weight |
2000KG |
Service & Support
Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline, respond to repair needs within 48 hours.
Free video training for operators and provision of process guidance manuals.
Lifetime technical support and software upgrade services.
